FL50
The extremely compactly designed CL50 milling robot is suitable for milling in house connections with pipe dimensions of 55-125 mm. Several 90° pipe bends do not pose an obstacle either when retracting or extending. The robot is retracted by pulling on the supply line and on a rope attached to the milling arm. he milling arm can be precisely raised, lowered and rotated in a wide range of 610°. A bracing bubble centers the robot in larger pipe diameters so that the motor is stabilized during milling. The system is also equipped with an adjustable LED lightning and with a color camera which is cleaned by the exhaust air of the milling motor. The CL50 "muscle feed" is available for stepless feed in the house connection. The robot can be operated via a portable control unit or via the equipment trolley. CL50 with Cart available.
FL80
The milling robot CL80 is excellently suited for milling in house connection of DN 85-200 - with carriage DN 300. Through the mutual inflation and venting of the bubbles for tension in combination with the movement of the bubble feed, it also overcomes difficult to access pipe sections. Even 45 ° pipe bends are no obstacle. The cutter arm can be lifted, lowered and rotated in a wide range of 630 ° precisely. The powerful, pneumatically driven milling motor eliminates even larger deposits or construction iron easily. The milling head contains a color camera with LED lighting. There is also pressurized air or water for camera cleaning available. The robot is operated via a removable control case integrated in the equipment cart which on top has a touch panel, joystick and a display. Sensors and display messages inform the user about the current status of the robotic system. By simply relocating the bracing bubbles, the robot is adapted to the respective pipe diameter. The supply line of the CL80 is available with 10 m and 20 m.
Mini Flow-Cutter

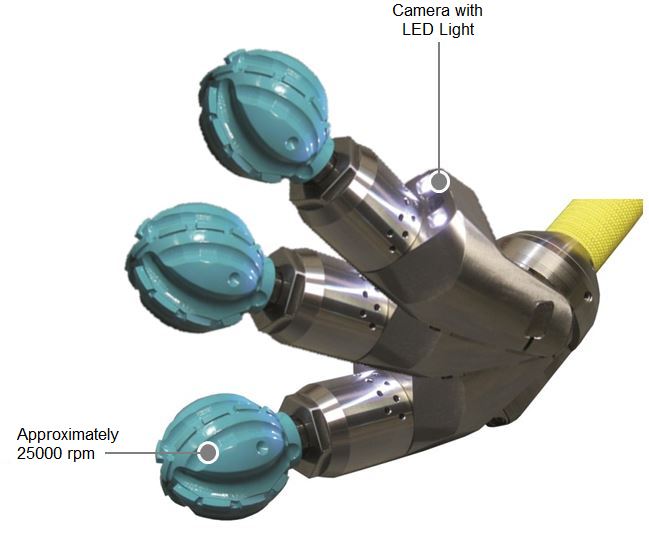

The Flow-Liner® Cutter is a robotic lining reinstatement cutter especially designed for 3" to 5" ID lined pipes. It is capable of maneuvering around 90 degree bends with ease in 3" to 5" ID lined pipes. With its LED lighting and control unit with color camera, the Flow-Liner® Cutter is the perfect tool for reinstating branch lines. The basic unit comes with the necessary nitrogen hookup and assembly. 35 CFM air compressor required (not included). The Flow-Liner® Cutter Cart is a optional compact convenient method of transporting your Flow-Liner® Cutter and accessories. Cart is sold separately.
